Small Mini Portable Gantry Crane Mobile Rubber Tyre Gantry Crane 10 5 3 2 1 Ton
Product presentation
Mini gantry crane are designed for transporting and lifting materials.
Small lift Gantry Crane which is manufactured for the medium and small factory (company) daily production need. It applies to model manufacture and installing situation, automobile factories, producing department and other lifting occasions.
The small electric gantry crane can move easily, disassemble and install quickly, cover little area. The structure design reasonably, can withstand 500 ~ 10000 kg weight, span up to 10 meters.
Especially apply to yard and workshop equipment installation, transportation.
The small gantry hoisting belt brake on bearing universal wheel can move on the ground, with electric hoist or manual hoist, chain blocks or monorail car accessory, realize the mechanization of hoisting, can reduce manpower and production costs, improve work efficiency.
Product details
1. Steel structure: Q235B carbon steel structure steel adopts a seamless forming process, more solid and beautiful:
Galvanized epoxy resin paint
Three layers of paint
2. Electric trolley type chain hoist:
Chain lift, single-speed
High strength low alloy steel structure, with motor and high wear-resistant wheels, compact structure, easy to install
Insulation class
3. Welding and spraying
4. Class 8.8 high strength bolts
5. The safety screw
6. Iron core polyurethane universal brake casters
Product superiority
1. The lifting weight of the gantry frame can reach 10 tons, with a variety of installation configurations and spans. Can be used with hand hoist, chain hoist, wire rope hoist.
2. Prefabricated standard modular design makes movement easier.
3. It can be installed on any ground without putting pressure on the roof structure of the building.
4. High lifting capacity.
5. Wide applicability and can be applied in many materials handling environments.
6. Economical for individual work units.
7. Easy installation, reducing installation time and cost.
8. It can increase operators' satisfaction.
9. The safe operating environment can be realized.
10. Reduce the labor force and improve production efficiency.

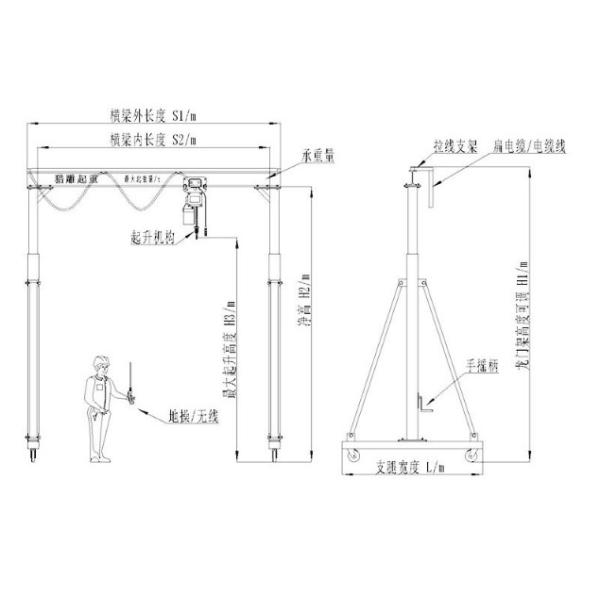

Technical parameters
| Model | Capacity(ton) | Total height(m) | Lifting height(m) | Internal width(m) | external width(m) | H值(mm) |
| PT2-2 | 1 | 2.6-4 | 3.39 | 3 | 2.76 | 410 |
| 1 | 3.5-5 | 4.39 | 3 | 2.76 | 410 |
| 2 | 2.6-4 | 3.215 | 3 | 2.69 | 535 |
| 2 | 3.5-5 | 4.215 | 3 | 2.69 | 535 |
| 3 | 2.6-4 | 3.015 | 3 | 2.69 | 685 |
| 3 | 3.5-5 | 4.015 | 3 | 2.69 | 685 |
| 5 | 2.6-4 | 2.910 | 3 | 2.61 | 740 |
| 5 | 3.5-5 | 3.910 | 3 | 2.61 | 740 |
Install and packaging
